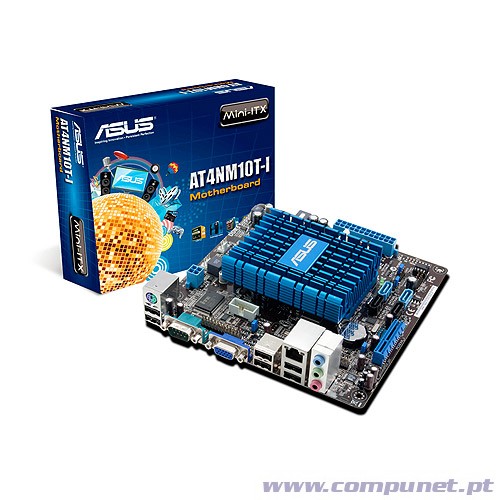

Asus AT4NM10T-I

- CPU : Intel Atom D425 Integrado
- Chipset : Intel NM10

Memória :
- 2 x SoDIMM, Max. 4GB, DDR3 800 Hz Non-ECC, Un-buffered Memory
- Single Channel

- Ranhuras de expansão : 1 x PCI
- VGA : Integrated Intel Graphics Atom D425

Armazenamento :
Built-in Controller :
- 2 xSATA 3 Gb/s ports support AHCI mode
JMicron® JMB362 controller :
- 2 x SATA 3Gb/s port(s), black

- LAN : PCIe Gb LAN, Realtek® 8111E
- Áudio : VIA VT1705S 6-Channel High Definition Audio CODEC
- USB : 8 USB 2.0/1.1 (2 portas na MB, 6 portas painel traseiro)

Conectores Painel Traseiro :
- 1 x PS/2 keyboard/mouse combo port(s)
- 1 x D-Sub
- 1 x LAN (RJ45) port(s)
- 6 x USB 2.0
- 1 x COM port(s)
- 3 x Audio Jack(s)

Conectores Internos :
- 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
- 1 x TPM connector(s) (Optional)
- 1 x COM port(s) connector(s)
- 1 x CPU Fan connector(s)
- 1 x Chassis Fan connector(s)
- 1 x S/PDIF out Header(s)
- 1 x 24-pin EATX Power connector(s)
- 1 x 4-pin ATX 12V Power connector(s)
- 1 x parallel port connector(s)
- 1 x Front panel audio connector(s) (AAFP)
- 1 x System panel(s)
- 1 x Chassis Intrusion connector(s)
- 1 x 18 bit LVDS connector(s)
