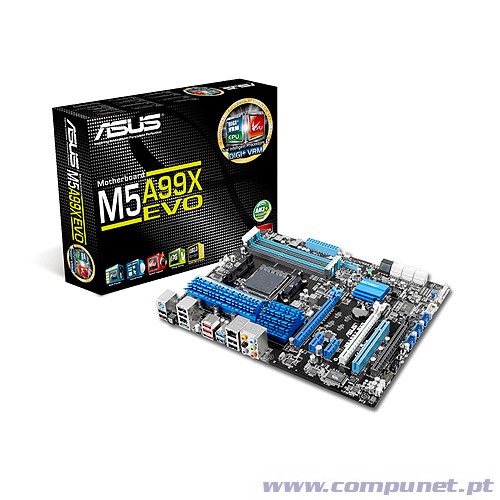

Asus M5A99X Evo

CPU :
- AMD AM3+ FX™/Phenom™ II/Athlon™ II/Sempron™ 100 Series Processors
- Suporta AM3+ 32 nm CPU
- Suporta CPU até 8 cores
- Suporta CPU até 140 W
- AMD Cool 'n' Quiet™ Technology

- Chipset : AMD 990X/SB950

Memória :
- 4 x DIMM, Max. 32GB, DDR3 2133(O.C.)/1866/1600/1333/1066 Hz ECC, Non-ECC, Un-buffered Memory
- Dual Channel Memory Architecture

Ranhuras de Expansão :
- 2 x PCIe 2.0 x16 (x16 or dual x8)
- 1 x PCIe 2.0 x16 (x4 mode, black)
- 2 x PCIe 2.0 x1
- 1 x PCI

Multi-GPU :
- NVIDIA® Quad-GPU SLI™ Technology
- AMD Quad-GPU CrossFireX™ Technology

Armazenamento :
AMD SB950 controller :
- 6 x SATA 6Gb/s port(s), cinza
- Suporta Raid 0, 1, 5, 10
JMicron® JMB362 controller :
- 2 x SATA 3Gb/s port(s), preto
- 1 x Power eSATA 3Gb/s port(s), verde
- 1 x eSATA 3Gb/s port(s), vermelho

- LAN : Realtek® 8111E , 1 x Gigabit LAN
- Áudio : Realtek® ALC 892 8-Channel High Definition Audio CODEC

IEEE 1394 :
- Controlador VIA® 6308P
- 2 x IEEE 1394a port(s) (1 na mboard, 1 painel traseiro)

USB :
ASMedia® USB 3.0 controller :
- 4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
AMD SB950 controller :
- 14 x USB 2.0 port(s) (8 at back panel, black+red, 6 at mid-board)

I/O Painel Traseiro :
- 1 x PS/2 keyboard/mouse combo port(s)
- 1 x eSATA 3Gb/s
- 1 x Power eSATA 3Gb/s
- 1 x IEEE 1394a
- 1 x LAN (RJ45) port(s)
- 2 x USB 3.0
- 8 x USB 2.0
- 1 x Optical S/PDIF out
- 6 x Audio jack(s)

I/O Interno :
- 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin, blue)
- 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
- 1 x COM port(s) connector(s)
- 6 x SATA 6Gb/s connector(s)
- 2 x SATA 3Gb/s connector(s)
- 1 x IEEE 1394a connector(s)
- 1 x CPU Fan connector(s) (4 -pin)
- 3 x Chassis Fan connector(s) (1 x 4 -pin, 2 x 3 -pin)
- 1 x Power Fan connector(s) (1 x 3 -pin)
- 1 x S/PDIF out header(s)
- 1 x 24-pin EATX Power connector(s)
- 1 x 8-pin ATX 12V Power connector(s)
- 1 x Front panel audio connector(s) (AAFP)
- 1 x System panel(s) (Q-Connector)
- 1 x MemOK! button(s)
- 1 x TPU switch(es)
- 1 x EPU switch(es)
- 1 x Clear CMOS jumper(s
