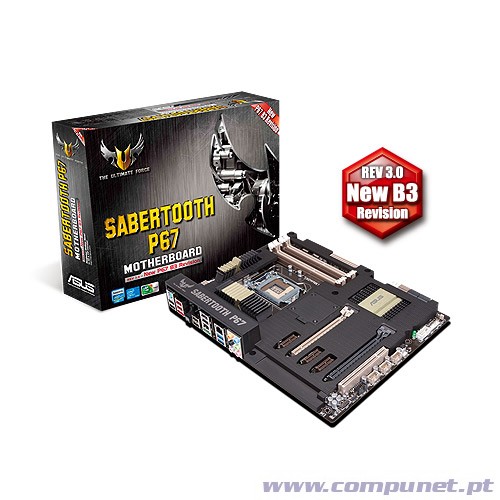

Asus Sabertooth P67

CPU :
- Intel Socket 1155 compatível com Processadores Intel Core i7 / i5 / i3 de 2ª geração
- Suporta tecnologia Intel Turbo Boost 2.0

- Chipset : Intel P67 Express

Memória :
- 4 x DIMM, Max. 32 GB, DDR3 1866/1800/1600/1333/1066 Non-ECC, Un-Buffered
- Arquitectura de memória Dual-Channel
- Suporta Intel Extreme Profile (XMP)

Ranhuras de Expansão :
- 2 x PCIe 2.0 x16 (single at x16 or dual at x8/x8 mode)
- 3 x PCIe 2.0 x1
- 1 x PCI

- Suporta tecnologia ATI Quad-GPU CrossFireX ; NVIDIA® Quad-GPU SLI

Armazenamento :
Intel® P67 Express Chipset :
- 2 xSATA 6.0 Gb/s (castanho)
- 4 xSATA 3.0 Gb/s (preto)
- Tecnologia Intel Rapid Storage, Suporta RAID 0,1,5,10
Marvell PCIe SATA 6GB/s
- 2 xSATA 6.0 Gb/s ports (cinzento)
JMicron® JMB362 SATA
- 1 xExternal SATA 3.0 Gb/s (vermelho)
- 1 x Power eSATA 3 GB/s (verde)

LAN :
- Intel® 82579 Gigabit LAN- Dual interconnect between the Integrated LAN controller and Physical Layer (PHY)

- Realtek® ALC892 8-Channel High Definition Audio CODEC
- IEEE 1394 : VIA® VT6308P, suporta 2 x 1394a ( 1 na MB ; 1 painel traseiro)
- USB : 14 x USB 2.0/1.1 (6 portas na MB, 8 portas painel traseiro) ; 4 x USB 3.0/2.0 duas no painel frontal mais duas no painel traseiro (azul)

Conectores Painel Traseiro :
- 1 x PS/2 Keyboard/Mouse Combo port
- 1 x External SATA 3Gb/s port (red)
- 1 x Power eSATA 3Gb/s port (green)
- 1 x IEEE 1394a
- 1 x LAN(RJ45) port(s)
- 2 x USB 3.0/2.0 ports (blue)
- 8 x USB 2.0/1.1 ports
- 1 x S/PDIF Out (Optical)
- 8 -Channel Audio I/O

Conectores Internos :
- 1 x USB 3.0/2.0 connector(s) supports additional 2 USB ports (19-pin; moss green)
- 3 x USB 2.0/1.1 connector(s) support additional 6 USB ports
- 1 x MemOK! button
- 4 x SATA 6.0Gb/s connectors ( 2 x gray; 2 x brown)
- 4 x SATA 3.0Gb/s (black)
- 1 x IEEE 1394a connector
- 1 x CPU Fan connector(s) (4-pin)
- 2 x Chassis Fan connector(s) (1 x 4-pin; 1 x 3-pin)
- 1 x Power Fan connector(s) (3-pin)
- 1 x Assistant Fan connector (3-pin)
- 1 x S/PDIF Out connector
- 24-pin EATX Power connector
- 8-pin EATX 12V Power connector
- 1 x Front panel audio connector
- 1 x COM connector
- 1 x System Panel (Q-Connector)
- 1 x Clear CMOS jumper
