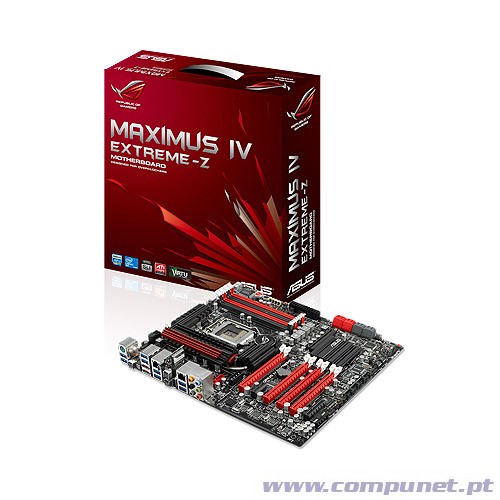

Asus Maximus IV Extreme-Z

Processador :
- Intel Socket 1155
- Compatível com segunda geração de Intel Core i7 / Core i5 / Core i3
- Suporta tecnologia Intel Turbo Boost 2.0

- Chipset : Intel Z68

Memória :
- 4 x DIMM, Max. 32GB, DDR3 2200(O.C.)/1866(O.C.)/1600/1333 Hz Non-ECC, Un-buffered
- Compatível com arquitectura de memória dual-channel
- Suporta Intel XMP

Suporte Multi-GPU :
- NVIDIA® 3-Way SLI
- AMD CrossFireX
- LucidLogix® Virtu

Ranhuras de expansão :
- 4 x PCIe 2.0 x16 (x16 or dual x8 or x8, x16, x16)
- 1 x PCIe 2.0 x4
- 1 x PCIe 2.0 x1

Armazenamento :
Intel® Z68 chipset :
- 2 x SATA 6Gb/s port(s), vermelho
- 4 x SATA 3Gb/s port(s), cinza
- Suporta Raid 0, 1, 5, 10
Suporta Tecnologia Intel® Smart Response com a segunda geração de processadores Intel® Core™ Marvell® PCIe 9182 controller :
- 2 x SATA 6Gb/s port(s), vermelho
JMicron® JMB362 controller :
- 2 x eSATA 3Gb/s port(s), vermelho

- LAN : Intel®, 2 x Gigabit LAN Controller(s)
- Áudio : Realtek® ALC 889 8-Channel High Definition Audio CODEC

USB :
NEC® USB 3.0 controller :
- 8 x portas USB 3.0 (6 no painel traseiro, azul, 2 na mboard)
NEC® USB 3.0 controller :
- 2 x USB 3.0 port(s) (2 painel traseiro, azul)
Intel® Z68 chipset :
- 9 x USB 2.0 port(s) (1 painel traseiro, preto, 8 na mboard)

Interfaces I/O Painel Traseiro :
- 1 x PS/2 keyboard/mouse combo port(s)
- 2 x eSATA 3Gb/s
- 2 x LAN (RJ45) port(s)
- 8 x USB 3.0
- 1 x USB 2.0 (white port can be switched to ROG Connect)
- 1 x Optical S/PDIF out
- 6 x Audio jack(s)
- 1 x Clear CMOS button(s)
- 1 x ROG Connect On/ Off switch(es)
- 1 x RC Bluetooth switch(es)

Interfaces Internos :
- 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
- 4 x USB 2.0 connector(s) support(s) additional 8 USB 2.0 port(s)
- 4 x SATA 6Gb/s connector(s)
- 4 x SATA 3Gb/s connector(s)
- 1 x CPU Fan connector(s)
- 3 x Chassis Fan connector(s)
- 1 x Power Fan connector(s)
- 3 x Optional Fan connector(s)
- 1 x S/PDIF out header(s)
- 1 x 24-pin EATX Power connector(s)
- 1 x 8-pin ATX 12V Power connector(s)
- 1 x Front panel audio connector(s) (AAFP)
- 1 x System panel(s)
- 8 x ProbeIt Measurement Points
- 3 x Thermal sensor connector(s)
- 1 x RC Bluetooth header(s)
- 1 x LN2 Mode header(s)
- 1 x Q Reset switch(es)
- 2 x EZ Plug connector(s) (4-pin Molex power connector)
- 1 x Power-on button(s)
- 1 x Reset button(s)
- 1 x LN2 Mode switch(es)
- 1 x Go Button(s)
- 1 x BIOS Switch button(s)
- 1 x ROG light connector(s)
- 1 x Clear CMOS jumper(s)
