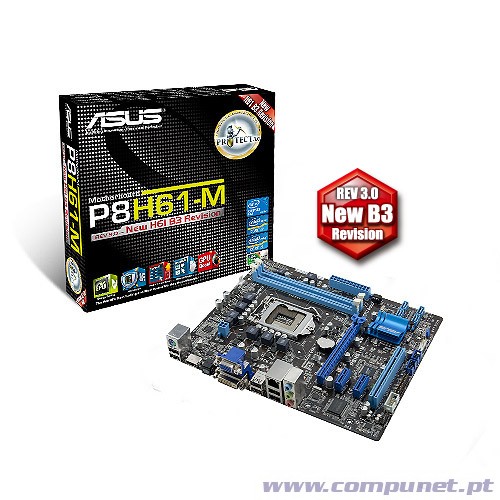

Asus P8H61-M

CPU :
- Intel® Socket 1155, para processadores de 2ª Geração Intel® Core i7 / Core i5 / Core i3 Processor
- Suporta tecnologia Enhanced Intel SpeedStep (EIST)
- Suporta tecnologia Intel® Turbo Boost 2.0

- Chipset : Intel® H61(B3) Chipset

Memória :
- 2 x DIMM, Max. 16 GB, DDR3 1333/1066 Non-ECC,Un-buffered Memory
- Arquitectura de memória Dual Channel
- Suporta Intel® Extreme Memory Profile (XMP)

Ranhuras de Expansão :
- 1 x PCIe 2.0 x16
- 2 x PCIe 2.0 x1
- 1 x PCI

VGA :
- Suporta dual VGA output: HDMI/DVI & D-Sub
- Suporta tecnologia HDMI com resolução máx. 1920 x 1200 @60Hz
- Suporta Single-link DVI com resolução máx. 1920 x 1200 @60Hz
- Suporta D-Sub com resolução máxima 2048x1536 @75Hz
- Suporta DirectX 10.1
- Tecnologia Intel® Quick Sync Video Technology Support

Armazenamento :
- Intel® H61(B3) Express Chipset
- 4 xSATA 3.0 Gb/s ports

- LAN Realtek® RTL8111E Gigabit LAN controller
- Audio : Realtek® ALC887 8-Channel Audio CODEC
- USB : 10 USB 2.0/1.1 (4 portas na board, 6 portas no painel traseiro)

I/O Painel Traseiro :
- 1 x PS/2 Keyboard/Mouse Combo port
- 1 x DVI
- 1 x D-Sub
- 1 x HDMI
- 1 x LAN(RJ45) port(s)
- 6 x USB 2.0/1.1
- 1 x S/PDIF Out (Optical)
- 3 x Audio jacks

I/O Interno :
- 2 x USB 2.0/1.1 connector(s) support additional 4 USB ports
- 4 x SATA 3.0Gb/s connector
- 1 x CPU Fan connector(s)
- 1 x Chassis Fan connector(s)
- 1 x LPT connector
- 1 x S/PDIF Out connector
- 1 x 24-pin ATX Power connector
- 1 x 4-pin ATX 12V Power connector
- 1 x Front panel audio connector
- 1 x COM
- 1 x System Panel connector
