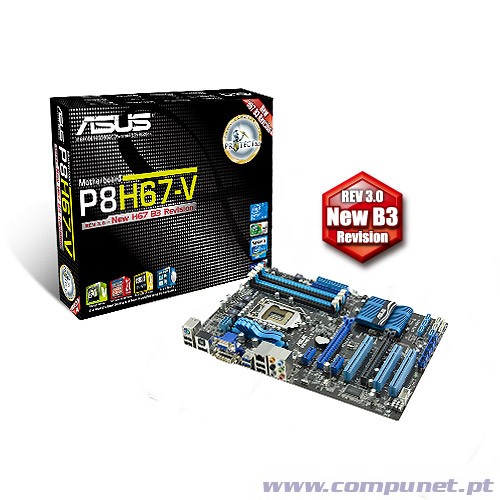

Asus P8H67-V

CPU :
- Intel Socket 1155 compatível com Processadores Intel Core i7 / i5 / i3 de 2ª geração
- Suporta tecnologia Intel Turbo Boost 2.0

- Chipset : Intel H67 Express

Memória :
- 4 x DIMM, Max. 32 GB, DDR3 1333/1066 Nion-ECC, Un-Buffered
- Arquitectura de memória Dual-Channel
- Suporta Intel Extreme Profile (XMP)

Ranhuras de Expansão :
- 1 x PCIe 2.0 x16 [azul] ( @ x16 )
- 1 x PCIe 2.0 x16 [preto] (@ x4, compatível com dispositivos PCIe x1, x2 e x4)
- 2 x PCIe 2.0 x1
- 3 x PCI

- Suporta tecnologia ATI Quad-GPU CrossFireX

Armazenamento :
Intel® H67 Express Chipset :
- 2 xSATA 6.0 Gb/s (cinzento)
- 4 xSATA 3.0 Gb/s (azul)
- Tecnologia Intel Rapid Storage, Suporta RAID 0,1,5,10
VIA VT6415 PATA controller :
- 1 xUltraDMA 133/100 até 2 dispositivos PATA

- LAN : PCIE Gigabit LAN
- ALC887 8-Channel High Definition Audio CODEC
- USB : 12 x USB 2.0/1.1 (8 portas na MB, 4 portas painel traseiro) ; 2 x USB 3.0/2.0 (azul) no painel traseiro

Conectores Painel Traseiro :
- 1 x PS/2 Keyboard/Mouse Combo port
- 1 x DVI
- 1 x VGA
- 1 x HDMI
- 1 x LAN(RJ45) port(s)
- 2 x USB 3.0/2.0
- 4 x USB 2.0/1.1
- 1 x S/PDIF Out (Optical)
- 8 -Channel Audio I/O

Conectores Internos :
- 4 x USB connectors support additional 8 USB ports
- 1 x MemOK! switch
- 1 x GPU Boost switch
- 1 x IDE connector
- 2 x SATA 6.0Gb/s connectors
- 4 x SATA 3.0Gb/s connectors
- 1 x CPU Fan connector(s)
- 2 x Chassis Fan connector(s)
- 1 x Power Fan connector(s)
- 1 x S/PDIF Out connector
- 1 x 24-pin ATX Power Power connector
- 1 x 8-pin EATX 12V Power connector
- 1 x Front panel audio connector
- 1 x COM connector
- 1 x System Panel connector
