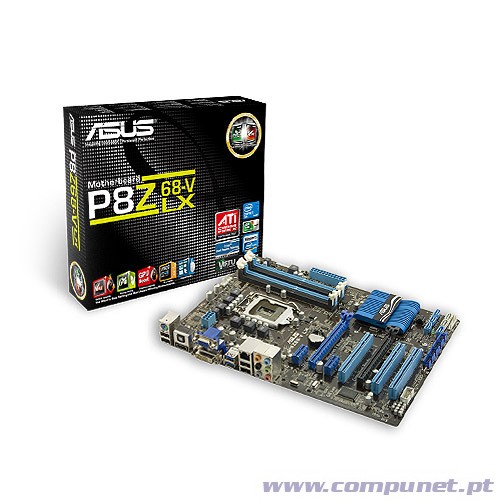

Asus P8Z68-V LX

Processadores Suportados :
- Intel Socket 1155, compatível com processadores Intel Core™ i7/Core™ i5/Core™ i3
- Suporte tecnologia Intel Turbo Boost 2.0

- Chipset : Intel Z68

Memória :
- 4 x DIMM, Max. 32GB, DDR3 2200(O.C.)/2133(O.C.)/1866(O.C.)/1600/1333/1066 Hz Non-ECC, Un-buffered Memory
- Dual Channel Memory Architecture

Ranhuras de expansão :
- 1 x PCIe 2.0 x16 (azul)
- 1 x PCIe 2.0 x16 (x4 mode, preto)
- 2 x PCIe 2.0 x1
- 3 x PCI

Armazenamento :
Intel® Z68 chipset :
- 2 x SATA 6Gb/s port(s), cinzento
- 4 x SATA 3Gb/s port(s), azul
- Suporta Raid 0, 1, 5, 10
- Suporta Tecnologia Intel® Smart Response com a 2ª geração de processadores Intel® Core™

- LAN Realtek® 8111E , 1 x Gigabit LAN Controller(s)
- Áudio : Realtek® ALC887 8-Channel High Definition Audio CODEC

USB :
ASMedia® USB 3.0 controller :
- 2 x USB 3.0 port(s) (2 at back panel, blue)
Intel® Z68 chipset :
- 12 x USB 2.0 port(s) (4 at back panel, black, 8 at mid-board)

I/O Painel Traseiro :
- 1 x DVI
- 1 x D-Sub
- 1 x HDMI
- 1 x LAN (RJ45) port(s)
- 2 x USB 3.0
- 4 x USB 2.0
- 1 x Optical S/PDIF out
- 6 x Audio jack(s)

I/O Internos :
- 4 x USB 2.0 connector(s) support(s) additional 8 USB 2.0 port(s)
- 1 x COM port(s) connector(s)
- 2 x SATA 6Gb/s connector(s)
- 4 x SATA 3Gb/s connector(s)
- 1 x CPU Fan connector(s) (4 -pin)
- 2 x Chassis Fan connector(s) (4 -pin)
- 1 x Power Fan connector(s) (3 -pin)
- 1 x S/PDIF out header(s)
- 1 x 24-pin EATX Power connector(s)
- 1 x 8-pin ATX 12V Power connector(s)
- 1 x Front panel audio connector(s) (AAFP)
- 1 x System panel(s)
- 1 x MemOK! button(s)
- 1 x TPU switch(es)
