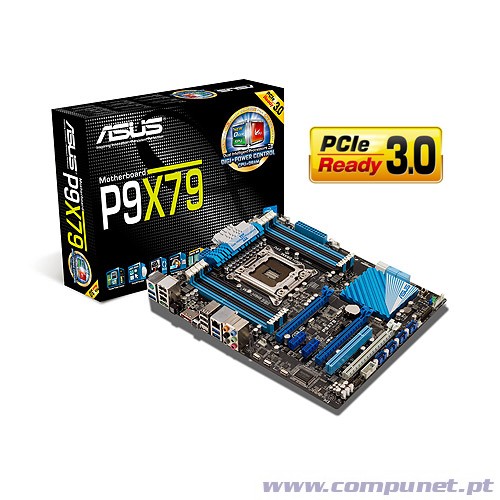

Asus P9X79

CPU :
- Intel® Socket 2011 para processadores 2ª Geração Core™ i7
- Suporta Intel® Turbo Boost Technology 2
- Chipset : Intel® X79

Memória :
- 8 x DIMM, Max. 64GB, DDR3 2400(O.C.)/2133(O.C.)/1866/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
- Quad Channel Memory Architecture
- Suporta Intel® Extreme Memory Profile (XMP)

Suporte Multi-GPU :
- Suporta Tecnologia NVIDIA® Quad-GPU SLI™
- Suporta Tecnologia AMD Quad-GPU CrossFireX™

Ranhuras de Expansão :
- 2 x PCIe 3.0/2.0 x16 (dual x16) *1
- 1 x PCIe 3.0/2.0 x16 (x8 mode) *1
- 2 x PCIe 2.0 x1
- 1 x PCI

Armazenamento :
Intel® X79 chipset :
- 2 x SATA 6Gb/s port(s), branco
- 4 x SATA 3Gb/s port(s), azul
Suporta Raid 0, 1, 5, 10
ASMedia® ASM1061 controller :
- 1 x Power eSATA 6Gb/s port(s), verde
- 1 x eSATA 6Gb/s port(s), vermelho

- LAN Intel® 82579V, 1 x Gigabit LAN Controller(s)
- Audio Realtek® ALC892 8-Channel High Definition Audio CODEC

IEEE 1394 VIA® 6315N controller :
- 1 x IEEE 1394a port(s) (1 at back panel)

USB Ports ASMedia® USB 3.0 controller :
- 4 x USB 3.0 port(s) (4 at back panel, blue)
Intel® X79 chipset :
- 14 x USB 2.0 port(s) (6 at back panel, black+white, 8 at mid-board)

Back I/O Ports :
- 1 x PS/2 keyboard/mouse combo port(s)
- 1 x eSATA 6Gb/s
- 1 x Power eSATA 6Gb/s
- 1 x IEEE 1394a
- 1 x LAN (RJ45) port(s)
- 4 x USB 3.0
- 6 x USB 2.0 (one port can be switched to USB BIOS Flashback)
- 1 x Optical S/PDIF out
- 6 x Audio jack(s)
- 1 x USB BIOS Flashback Button(s)

Internal I/O Ports :
- 4 x USB 2.0 connector(s) support(s) additional 8 USB 2.0 port(s)
- 1 x TPM connector(s)
- 1 x COM port(s) connector(s)
- 2 x SATA 6Gb/s connector(s)
- 4 x SATA 3Gb/s connector(s)
- 1 x CPU Fan connector(s) (4 -pin)
- 4 x Chassis Fan connector(s) (4 -pin)
- 1 x Optional Fan connector(s) (4 -pin)
- 1 x S/PDIF out header(s)
- 1 x 24-pin EATX Power connector(s)
- 1 x 8-pin ATX 12V Power connector(s)
- 1 x Front panel audio connector(s) (AAFP)
- 1 x System panel(s) (Q-Connector)
- 1 x MemOK! button(s)
- 1 x TPU switch(es)
- 1 x EPU switch(es)
- 1 x Clear CMOS jumper(s)
