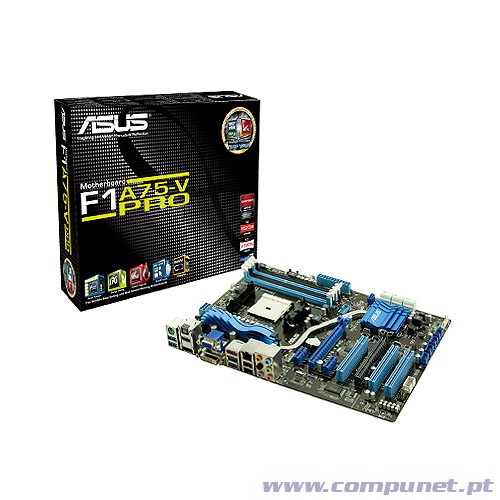

Asus F1A75-V PRO

CPU :
- Socket AMD FM1 A-Series / E2 Series
- Suporta CPU com 4 cores
- Suporta Tecnologia AMD® Turbo Core 2.0

- Chipset : AMD A75 FCH (Hudson D3)

Memória :
- 4 x DIMM, Max. 64GB, DDR3 1866/1600/1333/1066 Hz Non-ECC, Un-buffered Memory
- Arquitectura de memória Dual Channel

- Placa Gráfica : AMD Radeon HD 6000 Series Graphics
- Suporta : AMD CrossFireX

Ranhuras para expansão :
- 2 x PCIe 2.0 x16 ( x16, x4)
- 2 x PCIe 2.0 x1
- 3 x PCI

Armazenamento :
AMD A75 FCH (Hudson D3) chipset :
- 6 x SATA 6Gb/s port(s), cinza
- Suporta Raid 0, 1, 10, JBOD
ASMedia® PCIe SATA controller :
- 1 x SATA 6Gb/s port(s), azul marinho
- 1 x eSATA 6Gb/s port(s), vermelho

- LAN : Realtek® 8111E , 1 x Gigabit LAN
- Áudio : Realtek® ALC 892 8-Channel High Definition Audio CODEC

Interface Painel Traseiro :
- 1 x PS/2 keyboard/mouse combo port(s)
- 1 x DVI-D
- 1 x D-Sub
- 1 x DisplayPort
- 1 x HDMI
- 1 x eSATA 6Gb/s
- 1 x LAN (RJ45) port(s)
- 4 x USB 3.0
- 2 x USB 2.0
- 1 x Optical S/PDIF out
- 6 x Audio jack(s)

Interface Interno :
- 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
- 4 x USB 2.0 connector(s) support(s) additional 8 USB 2.0 port(s)
- 1 x COM port(s) connector(s)
- 7 x SATA 6Gb/s connector(s)
- 1 x CPU Fan connector(s) (4 -pin)
- 2 x Chassis Fan connector(s) (4 -pin)
- 1 x Power Fan connector(s) (3 -pin)
- 1 x S/PDIF out header(s)
- 1 x 24-pin EATX Power connector(s)
- 1 x 8-pin ATX 12V Power connector(s)
- 1 x Front panel audio connector(s) (AAFP)
- 1 x System panel(s)
- 1 x MemOK! button(s)
- 1 x TPU switch(es)
- 1 x EPU switch(es
